Urine Analyzer
thinka RT-4010

The urine analyzer for animals automatically gives the urine protein-creatinine ratio of dogs and cats.

Displays urine protein-creatinine ratio (UPC) in five rankings
Screening proteinuria is possible without being affected by dilution or urine concentration. UPC has a strong correlation with gross protein discharge. IRIS (International Renal Interest Society)* introduced the evaluation systems of kidney diseases according to stage classification, which indicates the highly valued significance of measuring UPC.
* Reference: IRIS Staging of CKD

Device and reagent for animals

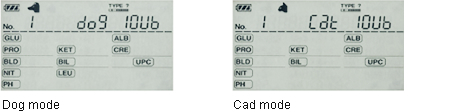

Measurement is possible in two modes (dogs and cats), which can be switched easily before measurement.


Streamline work by saving steps
Performing a visual inspection with this instrument saves the manual work required for testing. Printed test results can be pasted onto a pet's health record to explain to a pet owner.

Palm-sized meter

Printer is detachable from the meter, increasing mobility inside clinics or for doctor's visits.


Multiple functions
The small body is packed with features such as colored urine correction and temperature correction.

Easy operation and maintenance
The operation is simple. Just press the start key and place a test strip on the meter. Maintenance work is also reduced.

Meter specifications

Sample Urine
Target animal type Dogs and cats
Measurement principle Test strip: Dual wavelength reflectance method
(one wavelength for BLD measurement)
Measurement wavelengths Three LED wavelengths
(565, 635, 760nm)
Sample application method Manual dipping
Measurement capacity 50 tests per hour
Compatible test strips Urine test strips dedicated to Urine Analyzer thinka
Reaction time Approximately 60 seconds per test
Display Custom LCD
Memory capacity 100 test results
External output Compliant with RS-232C
Measurement environment Temperature: 10 to 30°C, humidity: 30 to 60%RH (non-condensing)
*Temperature compensation function used.
Dimensions 124 (W) x 81 (D) x 36 (H) mm
Weight 180g (without batteries)

Printer specifications

Printer Thermal recording printer
Printer paper High color development thermal paper (W58 mm × Ø26 mm)
Dimensions 125 (W) x 133 (D) x 36 (H) mm
Weight 180g (without printer paper)
Power supply AC adapter 7.5V 3A
Power consumption 20W
Attachment One-touch attachment
Connection Contact

Download for more information
